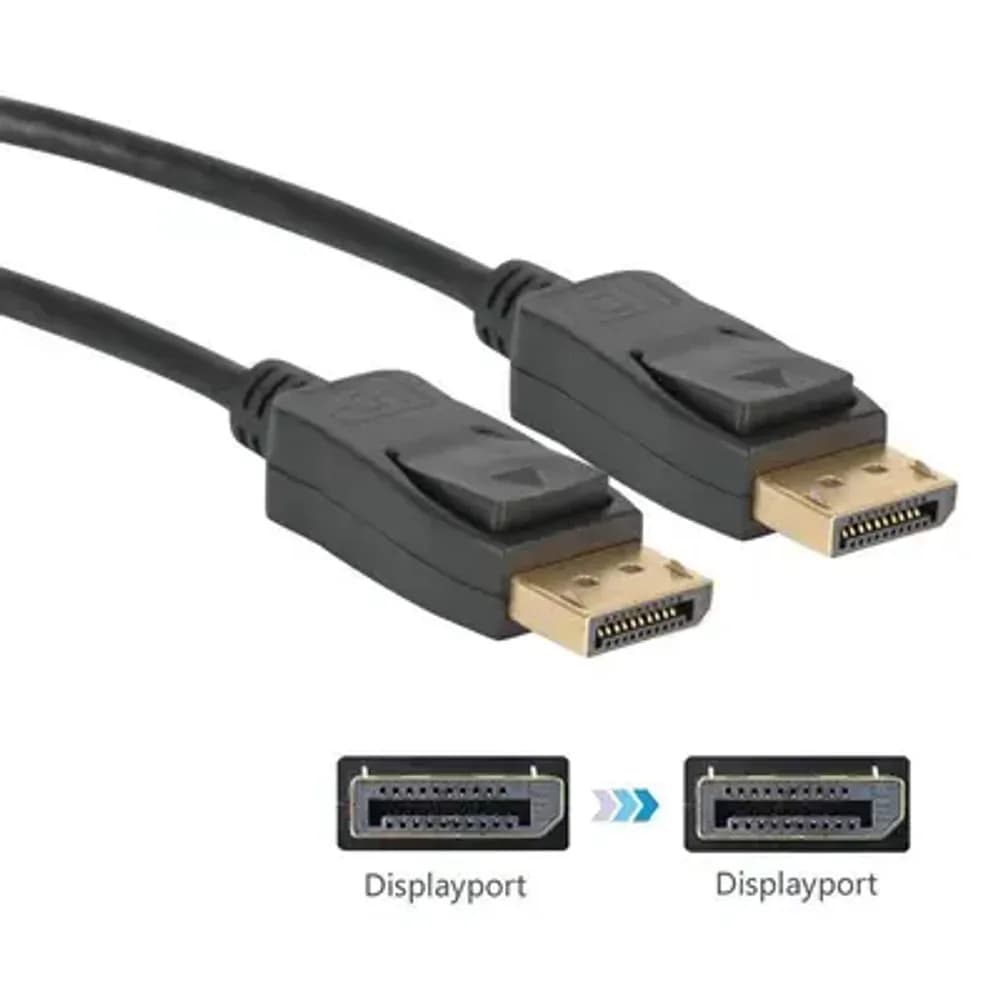

DISPLAY CABLE

The DP18AXSC is a specialized DisplayPort cable typically bundled with professional NVIDIA Quadro or RTX graphics cards. It is designed to meet the rigorous bandwidth requirements of high-end workstations. 📋 Technical Specifications Interface: DisplayPort (DP) Male to DisplayPort (Male). DP Version: DisplayPort 1.4 (backward compatible with 1.2 and 1.1). Length: 1.8 meters (approx. 6 feet). Resolution Support: 8K Ultra HD: Up to 7680 x 4320 @ 60Hz. 4K UHD: Up to 3840 x 2160 @ 120Hz or 144Hz. Full HD: Up to 1920 x 1080 @ 240Hz. Bandwidth: Supports HBR3 (High Bit Rate 3) with a total bandwidth of 32.4 Gbps. Audio: Supports multi-channel digital audio pass-through (up to 32 channels) Additional Features: HDR Support: High Dynamic Range for improved color depth. DSC 1.2: Display Stream Compression for high resolutions without visual loss. HDCP 2.2: Content protection for high-definition streaming. Locking Mechanism: Latching connectors to prevent accidental disconnection. 🔌 Physical Properties Connectors: Gold-plated contacts for corrosion resistance and better signal integrity. Wire Gauge: Typically 28 AWG or 30 AWG depending on the specific manufacturing batch. Shielding: Triple-layer shielding (Al-Mylar foil and copper braid) to minimize EMI/RFI interference.
