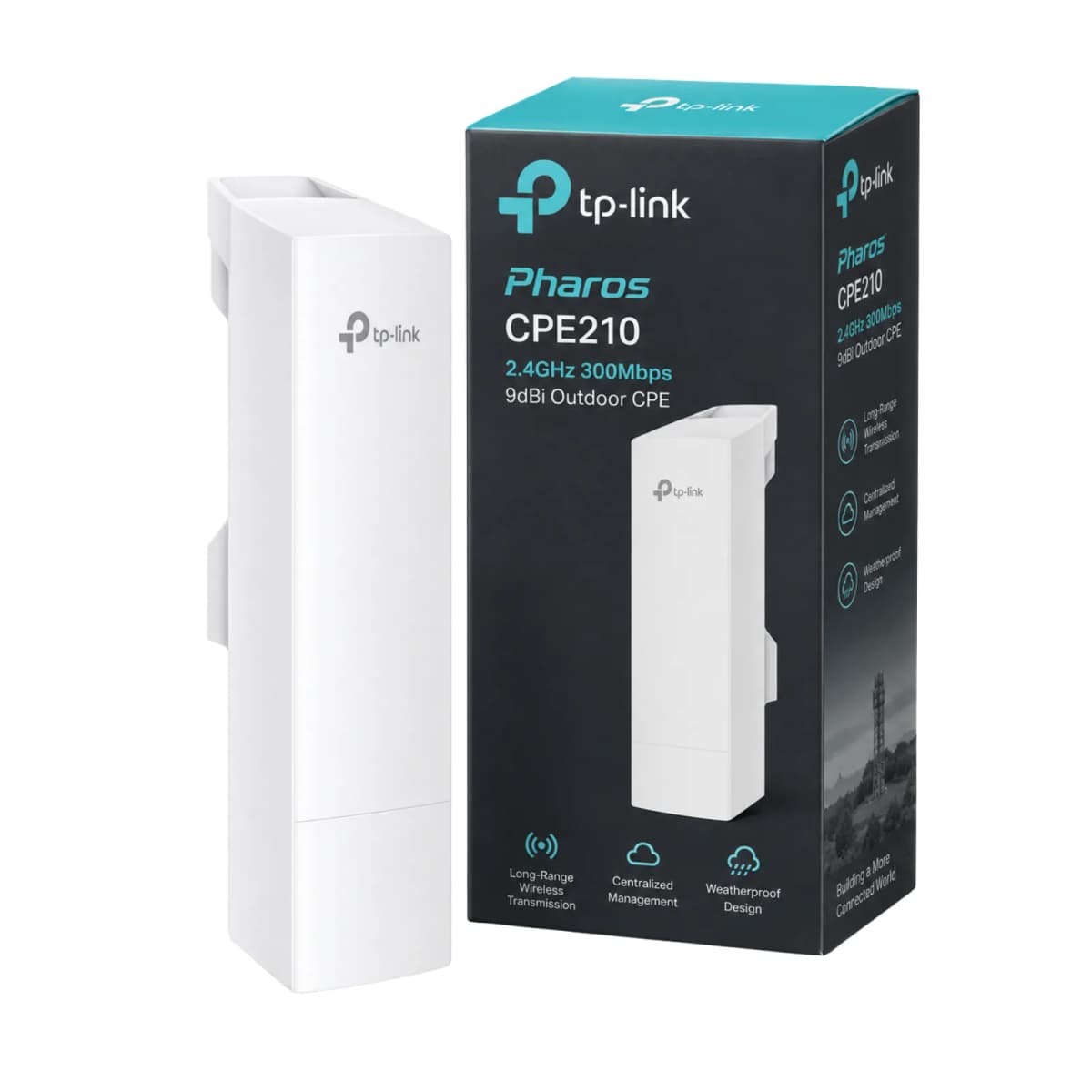

TP Link CPE210 2.4GHz 300Mbps 9 dBi Out-Door Access Point

The TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE is a high-gain outdoor wireless access point designed for point-to-point (PtP) and point-to-multipoint (PtMP) networking. Hardware Specifications • Core & Memory: Powered by a Qualcomm Atheros 560MHz CPU (MIPS 74Kc) with 64MB DDR2 RAM and 8MB Flash. • Physical & Environmental: Features a 10/100Mbps Ethernet port (Passive PoE in), grounding terminal, and reset button. It is housed in an outdoor ASA stabilized plastic enclosure with IPX5 waterproofing, 15KV ESD, and 6KV lightning protection, operating between -40°C and +70°C. Power consumption peaks at 5W via 24V Passive PoE support up to 60 meters. Wireless Specifications • Performance: Operates on the 2.4 ~ 2.483 GHz frequency range using IEEE 802.11b/g/n or proprietary TDMA Pharos MAXtream protocols. Dynamic wireless speeds reach up to 300 Mbps (40MHz). • Antenna & Range: Equipped with a built-in 9dBi 2x2 dual-polarized directional MIMO antenna with a 65° horizontal and 35°-40° vertical beamwidth. Transmission power adjusts up to 27 dBm/500 mW for long-range links exceeding 5 km.
