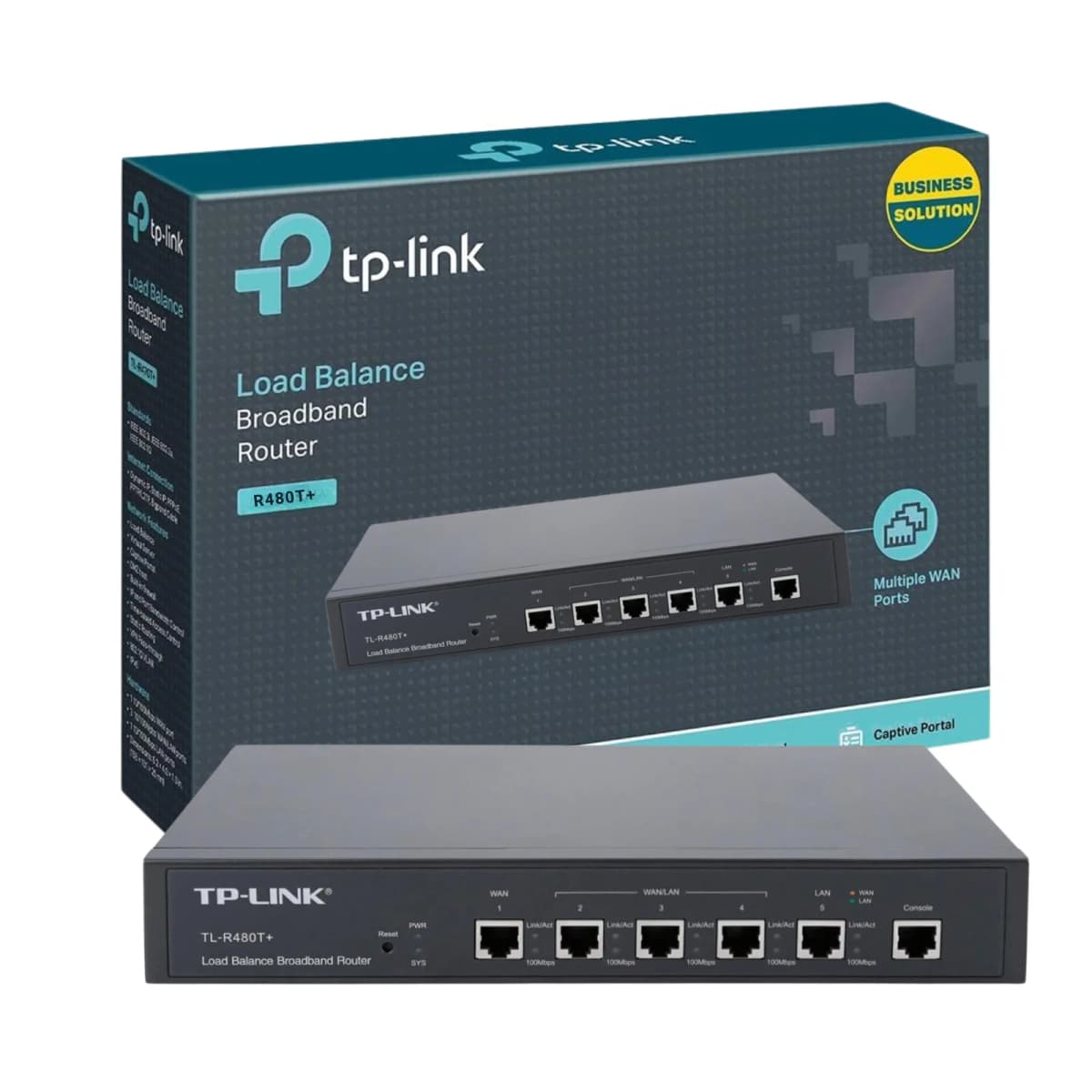

TP Link TL-R480T+ Load Balance Broadband Rack-Mountable Router

The TP-Link TL-R480T+ is a 5-port multi-WAN load balancing broadband router built for small and medium businesses. Hardware Specifications • Interfaces: • 1 Fixed Ethernet WAN Port • 1 Fixed Ethernet LAN Port • 3 Changeable Ethernet WAN/LAN Ports (allowing up to 4 WAN ports total) • Standards & Protocols: IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS • Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) • Memory & Flash: 128MB DRAM, 16MB Flash (varies slightly by hardware version) • Concurrent Sessions: Up to 30,000 • Power Supply: Internal Universal Power Supply (AC 100-240V ~ 50/60Hz) • Form Factor / Dimensions: 13-inch Standard Rack-Mount Width, 1U Height (294 × 180 × 44 mm) Key Features • Smart Load Balancing: Automatically distributes data streams across multiple WAN connections based on bandwidth proportion and line load. • Failover Mode: Automatically reroutes traffic to a secondary active internet line if the primary connection drops. • Network Management: Supports PPPoE server, IP/Port-based bandwidth control, session limits, and access control lists (IP/MAC/URL/Web filtering). • Security & Protection: Integrated firewall (IP/Domain/MAC filtering) and up to 4kV lightning protection.
