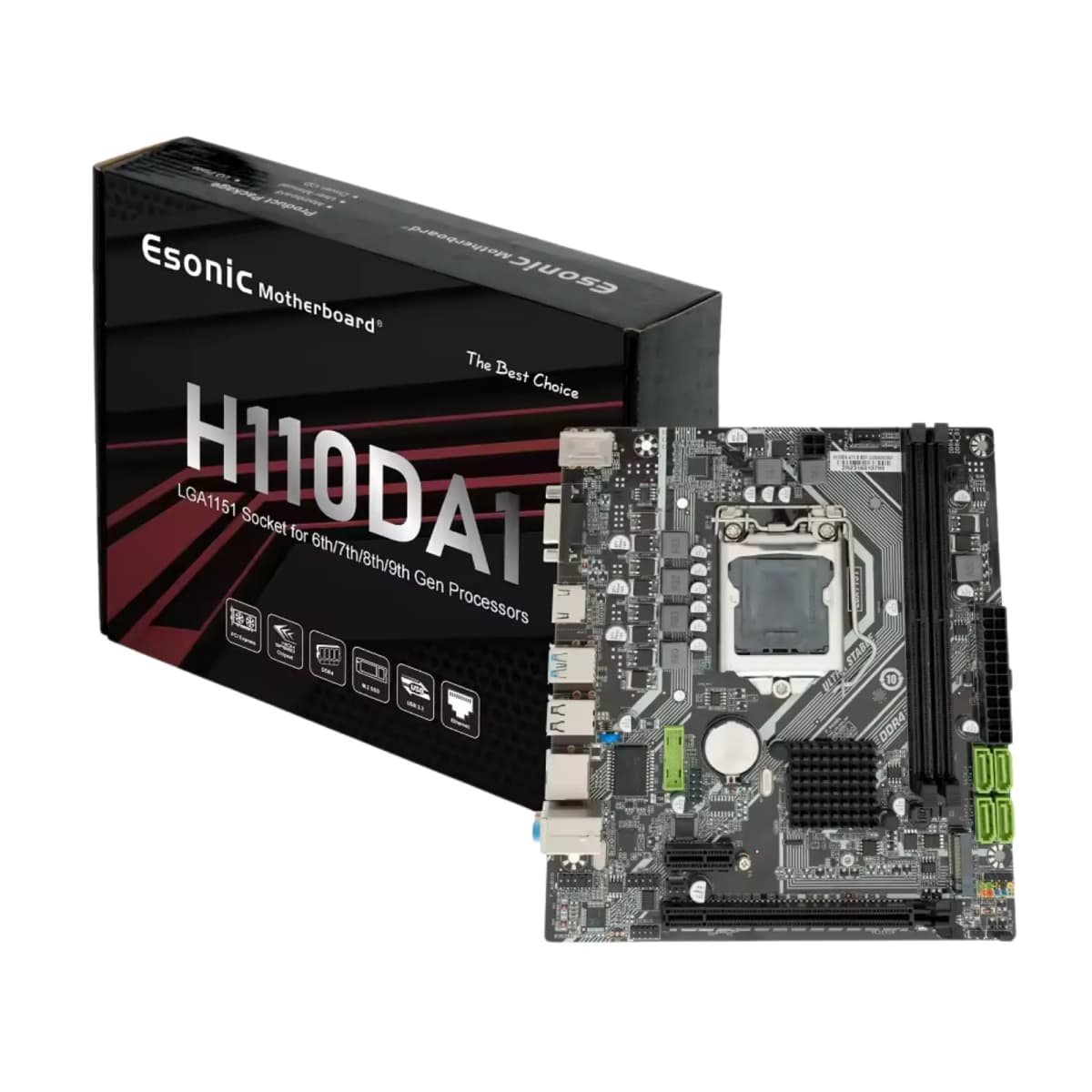

ESONIC H110DA1 Desktop Computer Motherboard

The Esonic H110DA1 is a budget-friendly Micro-ATX motherboard designed for desktop computers using supported Intel processors with the LGA1151 socket. Built around the Intel H110 chipset, it features two DDR4 memory slots, four SATA 6Gb/s ports, and an M.2 slot for compatible SSDs. HDMI and VGA display outputs, onboard HD audio, Ethernet connectivity, and PCI Express expansion provide the essential features for office PCs, home computers, and everyday desktop use. Its compact form factor makes it suitable for compatible Micro-ATX builds. Specifications: Product Model: Esonic H110DA1 Motherboard Chipset: Intel H110 CPU Socket: Intel LGA1151 Form Factor: Micro-ATX Memory Support: Memory Type: DDR4 Memory Slots: 2 × DDR4 DIMM Maximum Memory Capacity: Reported up to 64GB; verify the capacity supported by the exact board revision Memory Architecture: Dual-channel Supported Memory Speeds: 2133 / 2400 / 2666 MHz, depending on processor and motherboard support Storage: M.2 Slot: 1 × M.2 slot Supported M.2 SSD Sizes: 2260 / 2280, depending on revision M.2 Storage Support: Compatible SSD protocols depend on the board implementation SATA Ports: 4 × SATA 6Gb/s Ports & Connectors: Display Outputs: 1 × HDMI, 1 × VGA Network Speed: Realtek Ethernet 100 Mbps or Gigabit Ethernet Audio Codec: 6-channel Realtek High Definition Audio Rear USB 3.0 / USB 3.1 Gen 1 Ports: 2 Rear USB 2.0 Ports: 4 Primary Expansion Slot: 1 × PCI Express x16
