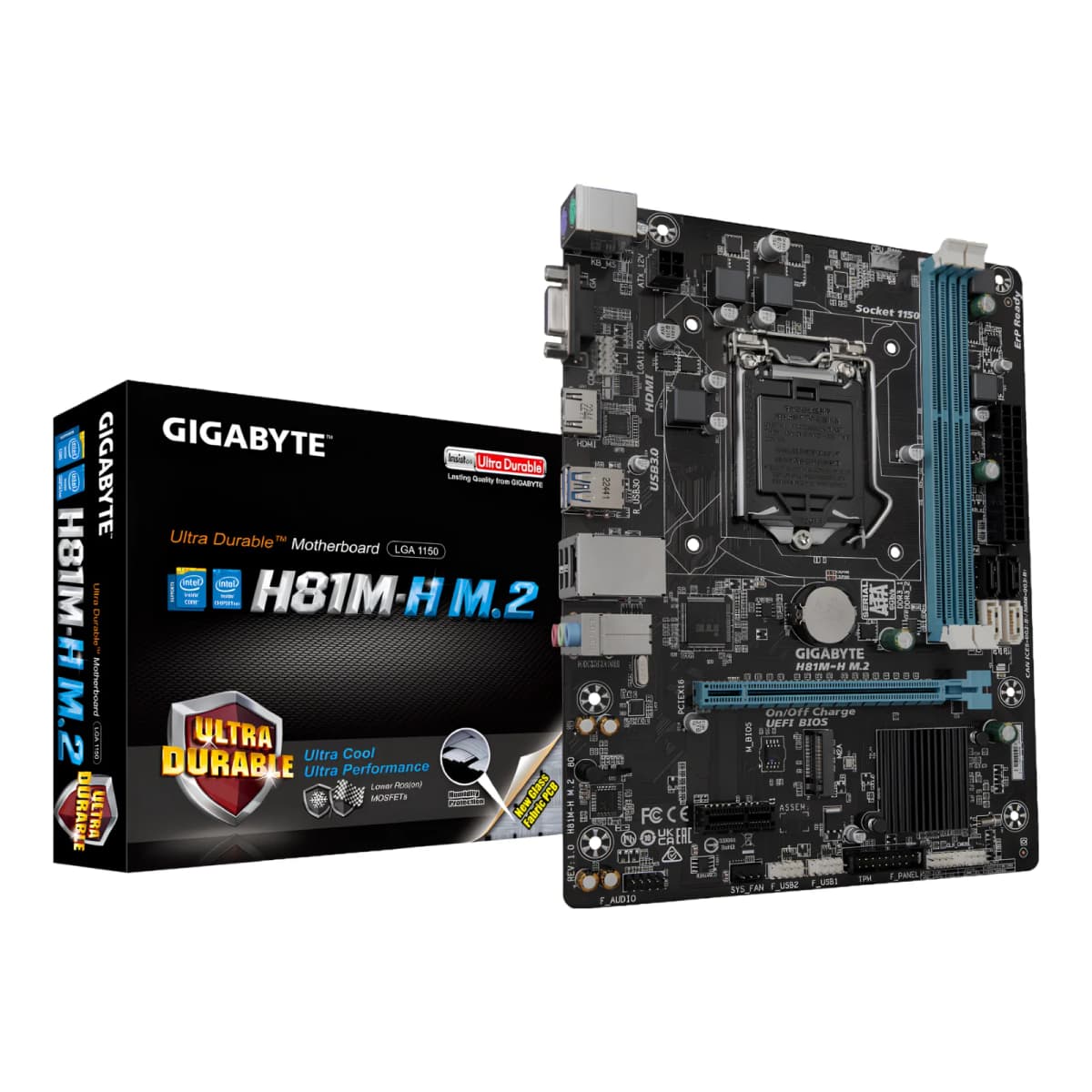

Gigabyte H81M-H M.2 (rev. 1.2) Desktop MotherBoard

Gigabyte H81M-H M.2 Micro-ATX Motherboard The Gigabyte H81M-H M.2 is a compact Micro-ATX motherboard designed for 4th Generation Intel processors using the LGA1150 socket. Powered by the Intel H81 Express chipset, it supports up to 16GB of dual-channel DDR3 memory and features an M.2 connector for compatible NVMe SSDs, providing flexible storage options for desktop systems. With Gigabit Ethernet, onboard HD audio, HDMI and VGA display outputs, and PCI Express expansion, this motherboard is suitable for office computers, home PCs, and everyday computing builds. Specifications Product Model: Gigabyte H81M-H M.2 Motherboard Chipset: Intel H81 Express CPU Socket: Intel LGA1150 Supported Processors: 4th Generation Intel Core i7, Core i5, Core i3, Pentium, and Celeron processors Form Factor: Micro-ATX Memory Support Memory Slots: 2 × DDR3 DIMM Maximum Memory Capacity: Up to 16GB Supported Memory Speeds: DDR3 1333 / 1600 MHz Storage M.2 Connector: 1 × Socket 3, M-key M.2 Drive Sizes: 2242, 2260, and 2280 M.2 Interface: PCIe Gen 2 x4/x2 NVMe SSD support SATA Ports: 4 Integrated Graphics Display Outputs: 1 × HDMI, 1 × D-Sub (VGA) Resolution: 4K (4096 × 2160) Connectivity LAN: Realtek Gigabit Ethernet (10/100/1000 Mbps) Audio: Realtek High Definition Audio CODEC Audio Channels: Up to 7.1-channel HD audio
