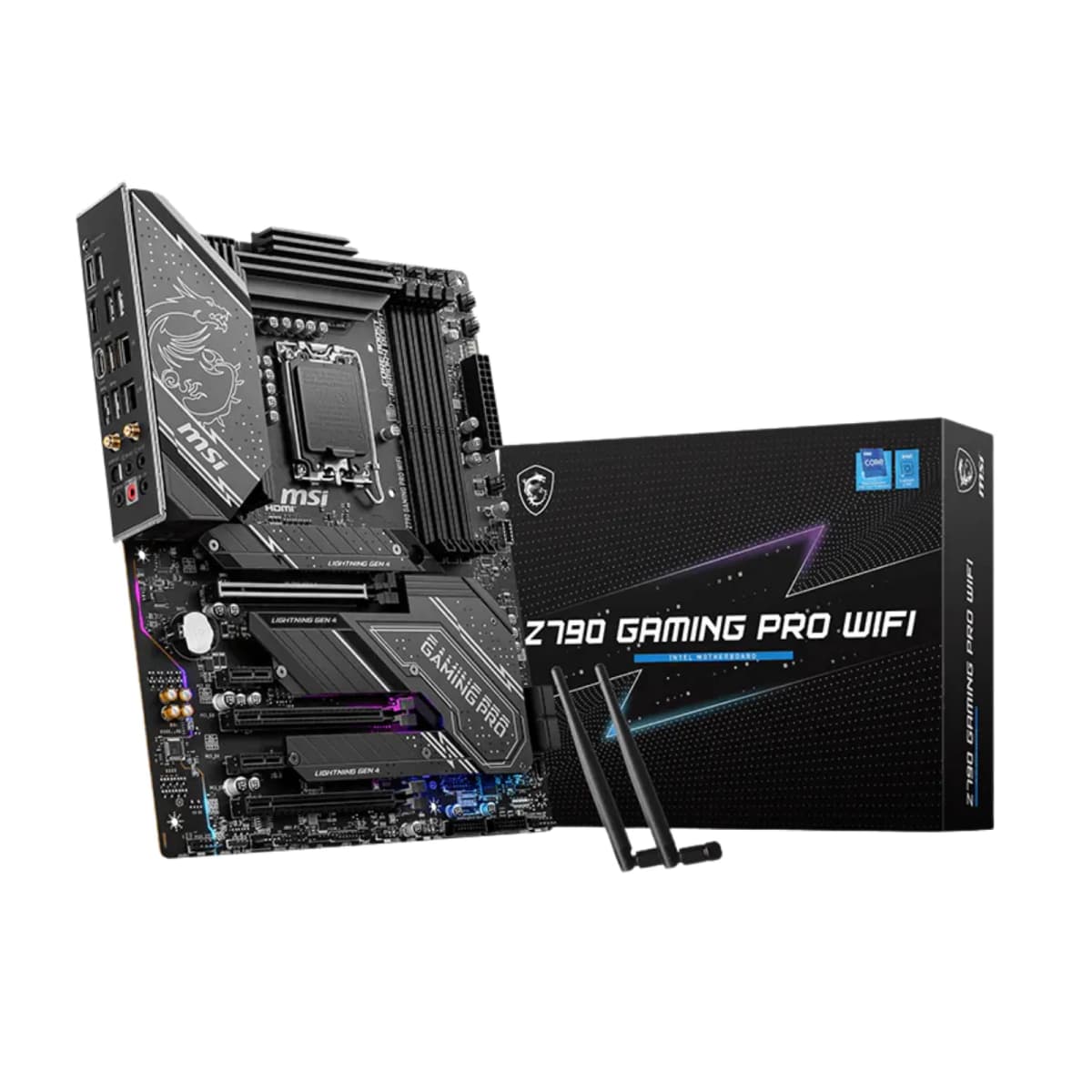

MSI Z790 GAMING PRO WIFI DDR5 MOTHERBOARD

MSI Z790 GAMING PRO WIFI ATX Motherboard The MSI Z790 GAMING PRO WIFI is an ATX motherboard designed for Intel 12th, 13th, and 14th Generation processors. Powered by the Intel Z790 chipset, it supports DDR5 memory up to 256GB, PCIe 4.0 expansion, and high-speed M.2 storage. It features Intel Wi-Fi 6E, Bluetooth 5.3, dual LAN connectivity with 2.5Gbps and 1Gbps Ethernet, and advanced power delivery for reliable performance in gaming and productivity systems. Specifications Brand: MSI Model: Z790 GAMING PRO WIFI Chipset: Intel Z790 CPU Socket: LGA 1700 Supported Processors: Intel Core 12th, 13th, and 14th Generation; Intel Pentium Gold; Intel Celeron, subject to CPU support and BIOS compatibility Power Design: 14+1+1 Duet Rail Power System with DrMOS and Core Boost CPU Power Connectors: 2 × 8-pin Form Factor: ATX Dimensions: 305 × 244 mm Memory Type: DDR5 Memory Slots: 4 × DDR5 DIMM Maximum Memory Capacity: 256GB Memory Architecture: Dual-channel Supported Memory Speeds: Up to 7200+ MHz (OC), depending on memory configuration and processor Memory Profiles: Intel XMP 3.0 Memory Support: Non-ECC, unbuffered memory PCIe Expansion: 3 × PCIe x16 slots and 2 × PCIe x1 slots PCIe Slot Configuration: PCI_E1 PCIe 4.0 x16; PCI_E3 and PCI_E5 PCIe 4.0 up to x4; PCI_E2 and PCI_E4 PCIe 3.0 x1 M.2 Slots: 3 × M.2 M.2 Support: PCIe 4.0 x4; M.2_3 also supports SATA mode M.2 Drive Sizes: 2242, 2260, 2280; M.2_1 additionally supports 22110 SATA Ports: 4 × SATA 6Gb/s RAID Support: SATA RAID 0, 1, 5, 10; M.2 NVMe RAID 0, 1, 5 Audio Codec: Realtek ALC897 Audio Support: 7.1-channel HD audio with S/PDIF output Debug Features: 4 × EZ Debug LED Operating System Support: Windows 11 64-bit and Windows 10 64-bit Connectivity Ethernet: 1 × Realtek RTL8125BG 2.5Gbps LAN and 1 × Realtek RTL8111H 1Gbps LAN Wireless: Intel Wi-Fi 6E, supporting 2.4GHz, 5GHz and 6GHz bands, with up to 2.4Gbps theoretical speed Wi-Fi Standards: 802.11a/b/g/n/ac/ax Bluetooth: Bluetooth 5.3 Rear USB: 4 × USB 3.2 Gen 1 Type-A (5Gbps), 3 × USB 3.2 Gen 2 Type-A (10Gbps), 1 × USB 3.2 Gen 2x2 Type-C (20Gbps) Front USB Headers: 4 × USB 2.0, 4 × USB 3.2 Gen 1 Type-A (5Gbps), 1 × USB 3.2 Gen 2 Type-C (10Gbps) Display Output: 1 × HDMI 1.4, up to 4K at 30Hz with a compatible processor featuring integrated graphics Audio Connections: Rear HD audio connectors and optical S/PDIF output Internal Fan Headers: 1 × CPU fan, 1 × pump fan and 5 × system fan RGB Headers: 2 × addressable RGB V2 and 1 × RGB LED Additional Internal Connections: TPM 2.0 header, chassis intrusion header, front audio header, front-panel headers and tuning controller connector
